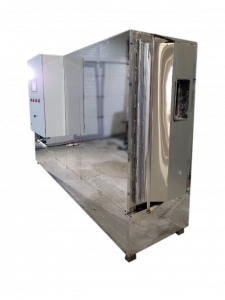

Freeze Dryer Bulova 100 intended for industrial use.

The maximum weight of the loaded product 100 kg/cycle
Area of ​​trays: 10 m²
The temperature on the surface of the sublimator, max. minus -40°
Shelf temperature, max. + 60С°
Mass of accumulating ice 150 kg/cycle.
The number of shelves for raw materials – 10
Technological cycle time 24-48 hours
Power of all devices and units 14,0 kW/year., installed: 19.0 kW/year.
Supply voltage 380 volts with ground
Mass is no more 1350 kg
Operating temperature 10° – 30°C
Maximum noise level 75 dB
Freon R-410a

Frame consists of several panels, from which the anterior and posterior walls are formed, cover and base. Made from thick sheet metal 0.8-1 mm and powder coated. Panels are connected to each other with screws.
Dryer  Bulova 100 is made from ASCI-304 stainless steel sheet. The Bulova 100 DA model has remote control.

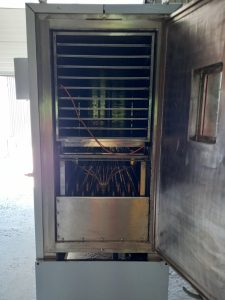

drying chamber is a hollow cylinder made of ASCI-304 food grade stainless steel, equipped with a front door made of organic glass. Silicone seamless ring acts as a sealing element. The doors have a handle with a latch. Necessary branch pipes and fasteners are welded to the cylinder.

Vacuum pump It is an integral part, equipped with two 2-stage rotary vane pumps. Operates at absolute pressure 15 Pa.

Transport dimensions
Number of cargo pieces: 2
1: 150/130/170 cm, 330 kg
2: 50/40/40 cm, 20 kg

Cost €88000 (EXW Ukraine)
